ELF Internals

In the world of modern operating systems, especially Unix and Linux, the binary file format is fundamental to how programs are executed, how libraries are shared, and how debugging and performance analysis are done. One format that plays a critical role in this ecosystem is ELF (Executable and Linkable Format). If you’ve ever wondered how your Linux system loads and runs executables or how dynamic libraries work, understanding the internals of ELF can give you valuable insights into system performance and architecture.

In this blog, we will dive into the inner workings of ELF files—breaking down how they are structured, how they function in the system, and why they are essential for anyone interested in systems programming or low-level Linux operations.

Introduction to ELF

ELF (Executable and Linkable Format) is the standard binary file format used on Unix and Unix-like systems (Linux, BSD, etc.) for executables, object code, shared libraries, and core dumps. It replaced older formats like a.out and COFF.

ELF File Structure

An ELF file consists of the following components:

1. ELF Header

Located at the start of the file, it provides a roadmap to the rest of the file contents.

Key fields in the ELF header:

• e_ident - Magic number and other identification info
• e_type - Identifies object file type (executable, shared object, etc.)
• e_machine - Specifies required architecture
• e_version - ELF version
• e_entry - Entry point virtual address
• e_phoff - Program header table offset
• e_shoff - Section header table offset
• e_flags - Processor-specific flags
• e_ehsize - ELF header size
• e_phentsize - Size of program header entry
• e_phnum - Number of program header entries
• e_shentsize - Size of section header entry
• e_shnum - Number of section header entries
• e_shstrndx - Section header string table index

You can generate different types of ELF files using standard compilers and linkers (like gcc):

• Relocatable (Object Files: ET_REL)

Compile with -c:

gcc -c source.c -o source.o

• Executable (ET_EXEC)

gcc source.c -no-pie -o program

Modern compilers may output ET_DYN position-independent executables unless “no-pie” is specified.

• Shared Object (ET_DYN)

Compile with -shared -fPIC:

gcc -shared -fPIC source.c -o libsource.so

• Core Dump (ET_CORE)

Generated by the OS when a program crashes (not directly via compilation, but by triggering a core dump).

You can also check in hexdump

$ hexdump -C -n 2 -s 16 hello-world.o
00000010  01 00                                             |..|
00000012

00000010  01 00   --> Type = 1 = ET_REL (Relocatable)
00000010  02 00   --> Type = 2 = ET_EXEC
00000010  03 00   --> Type = 3 = ET_DYN (Shared or PIE)
00000010  04 00   --> Type = 4 = ET_CORE

2. Program Header Table

An array of program headers describing segments, which are used for program execution. It basically tells the OS how to load the program into memory. Each entry contains:

• p_type - Segment type (loadable, dynamic, etc.)
• p_offset - File offset of segment
• p_vaddr - Virtual address in memory
• p_paddr - Physical address (if relevant)
• p_filesz - Size in file
• p_memsz - Size in memory
• p_flags - Permission flags (read, write, execute)
• p_align - Alignment requirements

It is used by the program loader (ld-linux) or kernel at runtime to map segments into memory properly.

3. Section Header Table

An array of section headers describing all sections in the file. Each entry contains:

• sh_name - Section name (index into string table)
• sh_type - Section type (progbits, nobits, etc.)
• sh_flags - Section attributes (write, alloc, exec)
• sh_addr - Virtual address in memory
• sh_offset - File offset
• sh_size - Section size
• sh_link - Link to another section
• sh_info - Additional section information
• sh_addralign - Address alignment
• sh_entsize - Entry size if section contains table

It is used by the linker (ld, gold), debugger (gdb), and static analysis tools like readelf/objdump.

It is not used at runtime by the OS loader — the section header table can even be omitted in stripped binaries.

4. Sections

Actual data referred to by section headers. Common sections include:

• .text - Executable instructions
• .data - Initialized data
• .bss - Uninitialized data (no space in file)
• .rodata - Read-only data
• .symtab - Symbol table
• .strtab - String table
• .shstrtab - Section header string table
• .rel.* - Relocation information
• .dynamic - Dynamic linking information
• .got - Global Offset Table
• .plt - Procedure Linkage Table
• .interp - Path to dynamic linker

5. Segments

Segments are contiguous regions of the program’s address space as described by the Program Header Table. Each segment bundles together one or more sections and defines how that part of the ELF file should be mapped into memory at runtime.

Common Segment Types

• PT_LOAD (Loadable Segment):
  Contains program code and/or data to be mapped into memory.

• PT_DYNAMIC (Dynamic Linking Information):
  Holds data needed for dynamic linking.

• PT_INTERP (Interpreter):
  Defines the path to the dynamic linker (e.g., /lib64/ld-linux-x86-64.so.2).

• PT_NOTE, PT_PHDR, etc.:
  For auxiliary information and program properties.

Sections are logical; they exist for linking, debugging, and organizing code/data (e.g., .text, .data). Segments are physical; they dictate what is loaded into memory and with what permissions.

In ELF binaries, section headers and unnecessary sections like symbol tables, debug info, etc., can be removed or stripped to reduce the file size or obscure internal details.

We can use the strip command from binutils:

$ readelf --sections hello-world
There are 31 section headers, starting at offset 0x36a0:

Section Headers:
#...
# We can see we have 31 section headers

$ ls -lh hello-world
-rwxrwxr-x 1 fury fury 16K Jul 19 20:56 hello-world

# Now let's remove unnecessary sections
$ strip --strip-all hello-world
$ ls -lh hello-world
-rwxrwxr-x 1 fury fury 15K Jul 19 20:57 hello-world


# As you can see size has been reduced
$ readelf --sections hello-world
There are 29 section headers, starting at offset 0x3148:

Section Headers:
# We can see we have 29 section headers

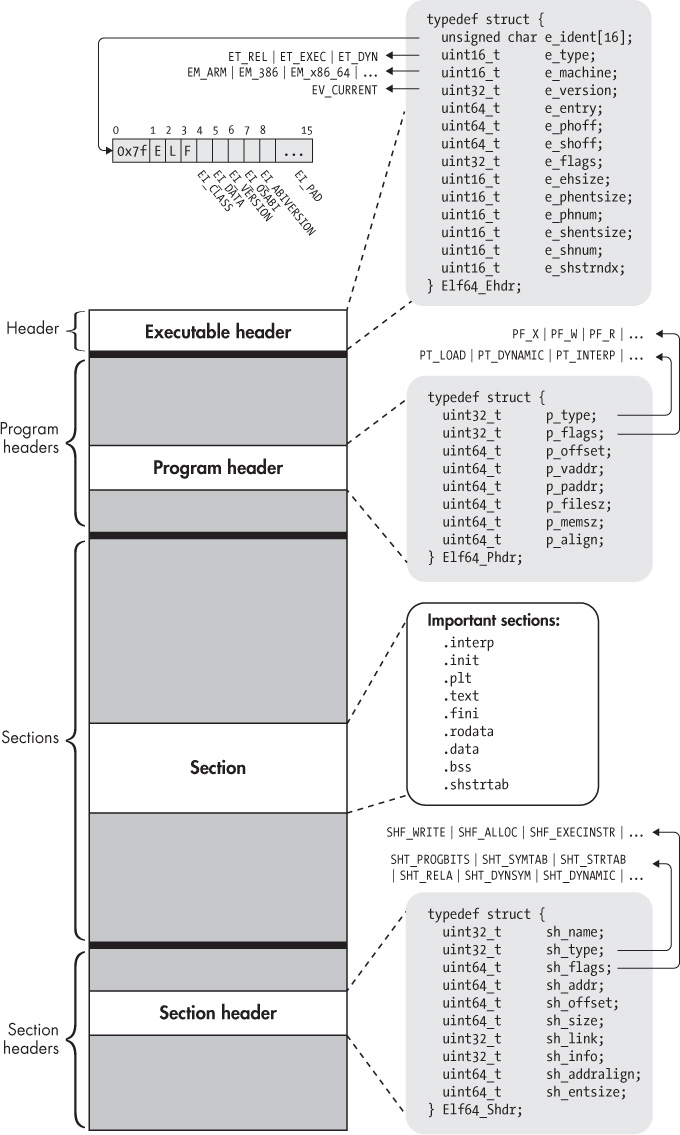

Here’s an insightful image that explains the structure of an ELF file, sourced from the Corkami project:

Source corkami

ELF Components

man elf

An ELF file is divided into:

• ELF Header
• Program Header Table
• Section Header Table
• Segments
• Sections

Info

I am using malcat for understanding ELF. You too can give it a try!

Use the following hello.c:

#include <stdio.h>

int main() {
    printf("Hello, World!\n");
    return 0;
}

gcc hello.c -o hello64
gcc hello.c -m32 -o hello32

Now, you can load this binaries in malcat and analyze them.

ELF Header

The ELF header is a road map that describes the entire structure of the file. It’s always located at the very beginning (offset 0) of the ELF file.

readelf -h binary

Detailed Structure (64-bit ELF)

#define EI_NIDENT 16

typedef struct {
    unsigned char e_ident[EI_NIDENT];  /* Magic number and info */
    Elf64_Half    e_type;              /* Object file type */
    Elf64_Half    e_machine;           /* Architecture */
    Elf64_Word    e_version;           /* Object file version */
    Elf64_Addr    e_entry;             /* Entry point virtual address */
    Elf64_Off     e_phoff;             /* Program header table file offset */
    Elf64_Off     e_shoff;             /* Section header table file offset */
    Elf64_Word    e_flags;             /* Processor-specific flags */
    Elf64_Half    e_ehsize;            /* ELF header size in bytes */
    Elf64_Half    e_phentsize;         /* Program header table entry size */
    Elf64_Half    e_phnum;             /* Program header table entry count */
    Elf64_Half    e_shentsize;         /* Section header table entry size */
    Elf64_Half    e_shnum;             /* Section header table entry count */
    Elf64_Half    e_shstrndx;          /* Section header string table index */
} Elf64_Ehdr;

To get size:

$ pahole Elf64_Ehdr
typedef struct elf64_hdr Elf64_Ehdr;
$ pahole elf64_hdr
# ...

Program Header Table

In ELF (Executable and Linkable Format), the terms “program header” and “segment header” are often used interchangeably, but they refer to the same data structure with different perspectives.

• Program Header:

  • Refers to the on-disk metadata entry in the ELF file’s Program Header Table (located at e_phoff in the ELF header).
  • Describes how parts of the file should be mapped into memory by the OS loader. Tells the OS loader how to create the process image.
  • Contains segments: groups of sections combined for runtime use.
  • Defined in the ELF specification as Elf32_Phdr or Elf64_Phdr.
  • readelf [-l|--program-headers|--segments] ./binary

• Segment Header:

  • Refers to the in-memory representation of the loaded segment.
  • After loading, the OS creates process segments (e.g., LOAD, DYNAMIC) based on program headers.
  • The term “segment” is used in runtime contexts (e.g., pmap, /proc/<pid>/maps in Linux).

Each program header (PT_LOAD, PT_DYNAMIC, etc.) typically corresponds to one memory segment when loaded.

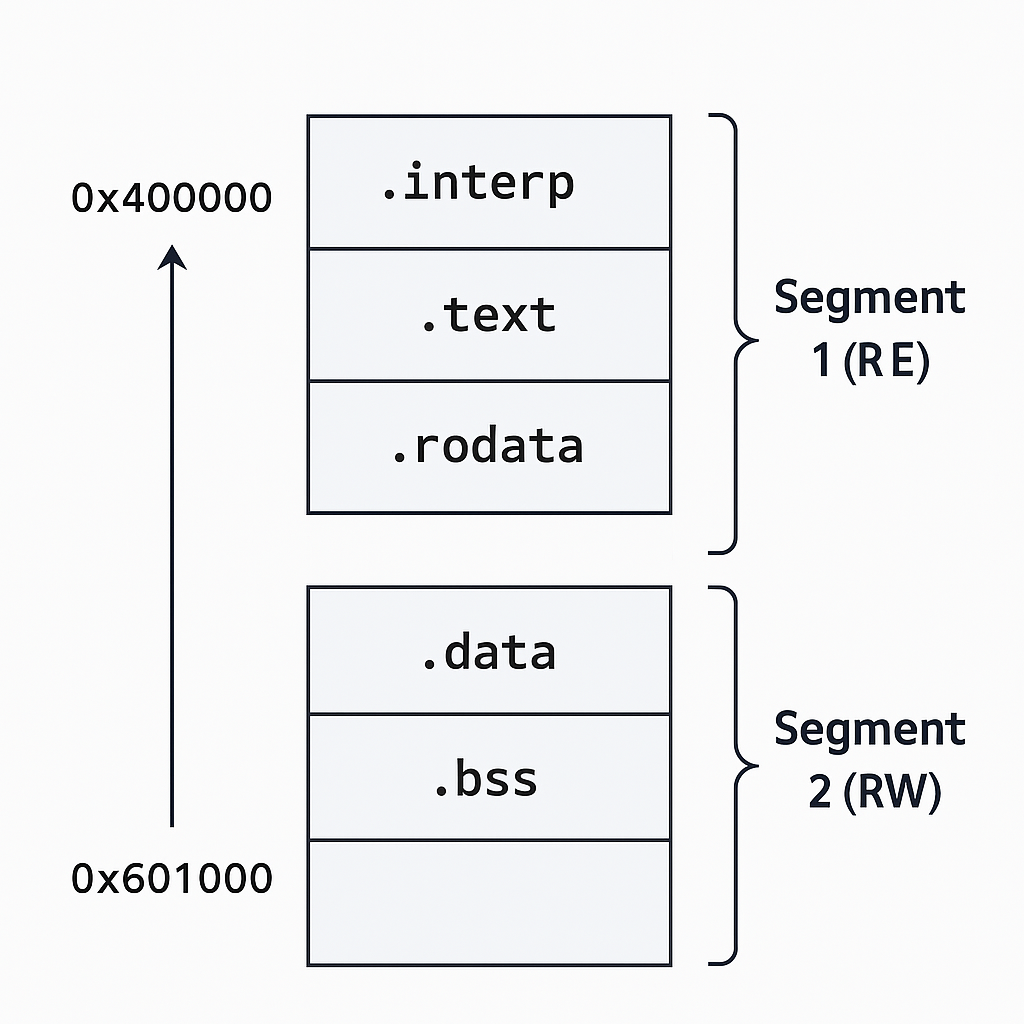

Many sections are grouped into segments. For example:

Segment LOAD #1:
  Includes: .text, .rodata, .interp
  Permissions: Read + Execute

Segment LOAD #2:
  Includes: .data, .bss
  Permissions: Read + Write

readelf -l hello64   # to see segments
readelf -S hello64   # to see sections
readelf -lS hello64 # View both

In Short,

• Sections = used during linking (e.g., .text, .data, .bss)
• Segments = used during loading → groups of sections

Source intezer.com

Example Sections:

• .text: code
• .data: initialized variables
• .bss: uninitialized variables
• .rodata: constants
• .symtab, .strtab: symbol and string tables

Example Segments:

• LOAD: actual code/data to map into memory
• INTERP: path to dynamic linker
• DYNAMIC: info for dynamic linking
• GNU_STACK: stack permissions

Exceptions:

• Some program headers (e.g., PT_PHDR, PT_NOTE) don’t always map to dedicated segments.
• Segments can be split further by the OS (e.g., for alignment or security).

typedef struct {
    uint32_t   p_type;
    Elf32_Off  p_offset;
    Elf32_Addr p_vaddr;
    Elf32_Addr p_paddr;
    uint32_t   p_filesz;
    uint32_t   p_memsz;
    uint32_t   p_flags;
    uint32_t   p_align;
} Elf32_Phdr;

typedef struct {
    uint32_t   p_type;
    uint32_t   p_flags;
    Elf64_Off  p_offset;
    Elf64_Addr p_vaddr;
    Elf64_Addr p_paddr;
    uint64_t   p_filesz;
    uint64_t   p_memsz;
    uint64_t   p_align;
} Elf64_Phdr;

Section Header Table

The Section Header Table is a critical part of the ELF (Executable and Linkable Format) file that describes all the sections contained in the binary. Unlike Program Headers (which define segments for execution), Section Headers are primarily used by linkers, debuggers, and static analysis tools.

Purpose of the Section Header Table

• Contains metadata about all sections in the ELF file.

• Used by:

  • Linkers (ld) to combine object files.
  • Debuggers (gdb) to map addresses to symbols.
  • Static analyzers (readelf, objdump) to inspect binaries.
• Not required at runtime (some stripped binaries remove it).

Location & Structure

• Located at e_shoff (ELF header field).
• Entry size = e_shentsize (usually 64 bytes for 64-bit ELF).
• Number of entries = e_shnum (if > 0xFFFF, stored in sh_size of the first entry).
• String table index = e_shstrndx (points to .shstrtab section).

typedef struct {
    Elf64_Word   sh_name;      // Section name (index in .shstrtab)
    Elf64_Word   sh_type;      // Section type (e.g., PROGBITS, SYMTAB)
    Elf64_Xword  sh_flags;     // Section attributes (e.g., ALLOC, WRITE)
    Elf64_Addr   sh_addr;      // Virtual address (0 if not loaded)
    Elf64_Off    sh_offset;    // File offset of section data
    Elf64_Xword  sh_size;      // Section size in bytes
    Elf64_Word   sh_link;      // Extra info (depends on type)
    Elf64_Word   sh_info;      // Extra info (depends on type)
    Elf64_Xword  sh_addralign; // Alignment constraints (e.g., 16)
    Elf64_Xword  sh_entsize;   // Fixed-size entry tables (e.g., symbol size)
} Elf64_Shdr;

Common Section Types (sh_type)

Type (Name)	Value	Description
SHT_NULL	0	Inactive entry.
SHT_PROGBITS	1	Executable code, data (.text, .data).
SHT_SYMTAB	2	Symbol table (.symtab).
SHT_STRTAB	3	String table (.strtab, .shstrtab).
SHT_RELA	4	Relocation entries (.rela.text).
SHT_HASH	5	Symbol hash table.
SHT_DYNAMIC	6	Dynamic linking info (.dynamic).
SHT_NOTE	7	Notes section (.note.ABI-tag).
SHT_NOBITS	8	Zero-initialized data (.bss).
SHT_DYNSYM	11	Dynamic symbol table (.dynsym).

Important Sections & Their Roles

Section	Type	Description
.text	SHT_PROGBITS	Executable code.
.data	SHT_PROGBITS	Initialized writable data.
.rodata	SHT_PROGBITS	Read-only data (strings, constants).
.bss	SHT_NOBITS	Zero-initialized data (occupies no file space).
.symtab	SHT_SYMTAB	Symbol table (debugging).
.dynsym	SHT_DYNSYM	Dynamic symbol table (runtime linking).
.strtab	SHT_STRTAB	String table for .symtab.
.shstrtab	SHT_STRTAB	Section name string table.
.dynamic	SHT_DYNAMIC	Dynamic linking info.
.plt	SHT_PROGBITS	Procedure Linkage Table.
.got	SHT_PROGBITS	Global Offset Table.

readelf [-S|--section-headers|--sections] ./binary

Relationship with Program Headers

• Program Headers group sections into segments for execution.
  • Example: .text + .rodata → PT_LOAD (read-only code segment).
• Sections are for static analysis, segments for runtime execution.

Segments

Segments are the runtime execution units of an ELF file. Unlike sections (which are used for linking and debugging), segments define how parts of the ELF file should be loaded into memory by the OS when the program runs.

What is a Segment?

• A contiguous block of memory with specific permissions (R/W/X).
• Created from Program Header entries (PT_LOAD, PT_DYNAMIC, etc.).
• The OS loader maps segments into virtual memory at runtime.
• Segments group multiple sections (e.g., .text, .rodata → READ-ONLY segment).

Types of Segments (p_type in Program Headers)

Type (Name)	Value	Description
PT_NULL	0	Unused entry (ignored).
PT_LOAD	1	Loadable segment (code/data).
PT_DYNAMIC	2	Dynamic linking info (.dynamic section).
PT_INTERP	3	Path to dynamic linker (e.g., /lib64/ld-linux-x86-64.so.2).
PT_NOTE	4	Auxiliary info (ABI version, build ID).
PT_PHDR	6	Location of the Program Header Table itself.
PT_TLS	7	Thread-Local Storage (TLS) data.
PT_GNU_STACK	0x6474e552	Stack permissions (executable/non-executable).

How Segments Are Created

1. Linker (ld) groups sections into segments:

   • .text, .rodata → READ-ONLY PT_LOAD segment.
   • .data, .bss → READ-WRITE PT_LOAD segment.

2. OS loader (execve syscall):

   • Reads PT_LOAD segments into memory.
   • Sets up PT_DYNAMIC for dynamic linking.
   • Initializes PT_TLS for thread-local storage.

After running a program:

# View memory mapping of a running process
cat /proc/self/maps

Example Output

00400000-0041c000 r-xp 00000000 08:01  /bin/ls    # PT_LOAD (R-X)
0061d000-0061e000 r--p 0001d000 08:01  /bin/ls    # PT_LOAD (R--)
0061e000-0061f000 rw-p 0001e000 08:01  /bin/ls    # PT_LOAD (RW-)

• Each line corresponds to a loaded segment.
• Permissions (r-x, rw-) match p_flags from Program Headers.

Special Segments

A. PT_INTERP (Interpreter Segment)

• Contains the path to the dynamic linker (e.g., /lib64/ld-linux-x86-64.so.2).
• Required for dynamically linked binaries.

B. PT_DYNAMIC (Dynamic Segment)

• Points to the .dynamic section.

• Contains tags like:

  • DT_NEEDED (required shared libraries).
  • DT_SYMTAB (dynamic symbol table).
  • DT_INIT/DT_FINI (initialization/finalization functions).

C. PT_GNU_STACK (Stack Permissions)

• Controls whether the stack is executable (rare) or non-executable (default).
• Modern systems enforce NX (No-Execute) for security.

D. PT_TLS (Thread-Local Storage)

• Used for variables marked with __thread in C/C++.
• Each thread gets its own copy of TLS data.

How the OS Loads Segments

1. execve syscall reads the ELF header.

2. Program Headers are processed:

   • PT_LOAD segments are mmap-ed into memory.
   • PT_INTERP triggers the dynamic linker.
   • PT_DYNAMIC provides linking metadata.
3. Permissions are enforced (e.g., .text is r-x).
4. Execution begins at e_entry (usually .text).

In Short,

• Segments are runtime memory units defined by Program Headers.
• PT_LOAD segments contain code/data loaded into memory.
• PT_DYNAMIC, PT_INTERP, PT_TLS handle dynamic linking and threading.
• View segments with readelf -l or /proc/<pid>/maps.
• Sections ≠ Segments: Sections are for linking, segments for execution.

Sections

An ELF section is a well-defined piece of the binary used during compilation, linking, debugging, and analysis. Each section contains specific types of data or code.

readelf -S hello # Sections

Common ELF Sections

Section Name	Type	Purpose
.text	PROGBITS	Contains executable machine code (your program logic)
.data	PROGBITS	Initialized global/static variables
.bss	NOBITS	Uninitialized global/static variables (zeroed by loader)
.rodata	PROGBITS	Read-only constants like strings or const variables
.symtab	SYMTAB	Symbol table (used by debugger, linker)
.strtab	STRTAB	String table for symbol names
.shstrtab	STRTAB	String table for section names
.rel.text / .rela.text	RELA or REL	Relocation info for .text
.comment	PROGBITS	Compiler version info
.debug_*	PROGBITS	Debugging info (if compiled with -g)

Each section has an entry in the Section Header Table, containing:

• Name (string offset into .shstrtab)
• Type (e.g., PROGBITS, NOBITS)
• Virtual address (if loaded into memory)
• Offset in the file
• Size
• Flags (e.g., AX, WA for readable/writable/executable)

ELF Reader

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <elf.h>

void print_elf_header(Elf64_Ehdr *ehdr) {
    printf("== ELF Header ==\n");
    printf("Magic: %.4s\n", ehdr->e_ident);
    printf("Class: %s\n", ehdr->e_ident[EI_CLASS] == ELFCLASS64 ? "ELF64" : "ELF32");
    printf("Entry point: 0x%lx\n", ehdr->e_entry);
    printf("Program Header Offset: 0x%lx\n", ehdr->e_phoff);
    printf("Section Header Offset: 0x%lx\n", ehdr->e_shoff);
    printf("Number of Program Headers: %d\n", ehdr->e_phnum);
    printf("Number of Section Headers: %d\n", ehdr->e_shnum);
    printf("Size of each Program Header: %d\n", ehdr->e_phentsize);
    printf("Size of each Section Header: %d\n", ehdr->e_shentsize);
}

void print_program_headers(FILE *fp, Elf64_Ehdr *ehdr) {
    Elf64_Phdr phdr;
    printf("\n== Program Headers ==\n");
    fseek(fp, ehdr->e_phoff, SEEK_SET);

    for (int i = 0; i < ehdr->e_phnum; i++) {
        fread(&phdr, 1, sizeof(phdr), fp);
        printf("Type: %d Offset: 0x%lx Vaddr: 0x%lx Paddr: 0x%lx Filesz: 0x%lx Memsz: 0x%lx Flags: 0x%x Align: 0x%lx\n",
               phdr.p_type, phdr.p_offset, phdr.p_vaddr, phdr.p_paddr,
               phdr.p_filesz, phdr.p_memsz, phdr.p_flags, phdr.p_align);
    }
}

void print_section_headers(FILE *fp, Elf64_Ehdr *ehdr) {
    Elf64_Shdr shdr;
    char *shstrtab = NULL;

    // Get section header string table first
    fseek(fp, ehdr->e_shoff + (ehdr->e_shstrndx * sizeof(Elf64_Shdr)), SEEK_SET);
    fread(&shdr, 1, sizeof(shdr), fp);

    shstrtab = malloc(shdr.sh_size);
    fseek(fp, shdr.sh_offset, SEEK_SET);
    fread(shstrtab, 1, shdr.sh_size, fp);

    printf("\n== Section Headers ==\n");
    fseek(fp, ehdr->e_shoff, SEEK_SET);
    for (int i = 0; i < ehdr->e_shnum; i++) {
        fread(&shdr, 1, sizeof(shdr), fp);
        printf("[%2d] Name: %-20s Type: 0x%x Addr: 0x%lx Offset: 0x%lx Size: 0x%lx\n",
               i,
               &shstrtab[shdr.sh_name],
               shdr.sh_type,
               shdr.sh_addr,
               shdr.sh_offset,
               shdr.sh_size);
    }

    free(shstrtab);
}

int main(int argc, char *argv[]) {
    if (argc != 2) {
        printf("Usage: %s <ELF file>\n", argv[0]);
        return 1;
    }

    FILE *fp = fopen(argv[1], "rb");
    if (!fp) {
        perror("fopen");
        return 1;
    }

    Elf64_Ehdr ehdr;
    fread(&ehdr, 1, sizeof(ehdr), fp);

    if (memcmp(ehdr.e_ident, ELFMAG, SELFMAG) != 0) {
        printf("Not a valid ELF file.\n");
        fclose(fp);
        return 1;
    }

    print_elf_header(&ehdr);
    print_program_headers(fp, &ehdr);
    print_section_headers(fp, &ehdr);

    fclose(fp);
    return 0;
}

The Linker (ld)

• Combines multiple object files (.o) and libraries (.a/.so) into a single executable or shared library.
• Resolves symbols (functions/variables) across files.
• Generates the final ELF structure (sections, segments, relocation info).

Types of Linkers on Linux:

Static Linker (ld.bfd or ld.gold or ld.lld)

• Invoked as ld (part of binutils or LLVM).
• Used at compile-time to create executables.

  # Example
  gcc main.c -o program  # Uses `ld` internally


Dynamic Linker (ld.so)

• Also called the “runtime linker” or “loader” (confusing, but true!).
• Handles dynamic linking at runtime.

  # Example
  /lib64/ld-linux-x86-64.so.2 ./program


The Loader (Linux Kernel + ld.so)

Two-Stage Loading Process:

1. Linux Kernel (execve syscall)

   • Reads the ELF header and Program Headers.
   • Maps PT_LOAD segments into memory (.text, .data).
   • Sets up the stack and heap.
   • If the binary is dynamically linked, it loads the interpreter (PT_INTERP).

2. Dynamic Linker (ld.so)

   • Runs before main().
   • Loads shared libraries (DT_NEEDED entries like libc.so.6).
   • Resolves symbols (e.g., printf from libc).
   • Applies relocations (fixes addresses in .got, .plt).
   • Transfers control to the program’s entry point (_start).

Trace Dynamic Linking

LD_DEBUG=files ./binary

Creating & Linking Libraries in Linux (Static & Dynamic)

Types of Libraries

1. Static
   • Extension : .a
   • Linking Time : Compile-Time
   • Faster, no runtime deps but larger in size
2. Dynamic
   • Extension : .so
   • Linking Time : Runtime
   • Smaller, shared across apps but needs .so at runtime

Creating a Static Library (libfoo.a)

Write a Source Files

// foo.c
int add(int a, int b) { return a + b; }

// bar.c
int mul(int a, int b) { return a * b; }

Compile to .o Files

gcc -c foo.c bar.c  # Generates foo.o, bar.o

Pack into .a Archive

ar rcs libfoo.a foo.o bar.o

• ar: Archiver tool
• rcs: Replace (r), Create (c), Index (s)

Verify

ar -t libfoo.a  # List contents

Linking a Static Library

Write Main Program

// main.c
#include <stdio.h>
int add(int, int);  // Declare (or use a header)
int mul(int, int);

int main() {
    printf("3 + 4 = %d\n", add(3, 4));
    printf("3 * 4 = %d\n", mul(3, 4));
    return 0;
}

Compile & Link

gcc main.c -L. -lfoo -o main
# Note: Write file.c before -L. -lfoo...

• -L.: Look in current dir for libraries
• -lfoo: Links libfoo.a

Run

./main

Creating a Dynamic Library (libfoo.so)

Compile with -fPIC

gcc -c -fPIC foo.c bar.c  # Position-Independent Code

Create Shared Library

gcc -shared foo.o bar.o -o libfoo.so

-shared: Generates .so instead of executable

Verify

nm -D libfoo.so  # Check exported symbols

Linking a Dynamic Library

Compile Main Program

gcc main.c -L. -lfoo -o main_dynamic

Run (Temporary Path)

LD_LIBRARY_PATH=. ./main_dynamic

LD_LIBRARY_PATH=.: Temporarily adds current dir to library search path

Install Permanently

sudo cp libfoo.so /usr/local/lib/
sudo ldconfig  # Update linker cache
./main_dynamic  # Now works without LD_LIBRARY_PATH

Tips

• Headers: Use .h files for declarations (best practice).
• Versioning: Append .so.1, .so.1.2 for ABI compatibility.
• Debugging: Use ldd ./main_dynamic to check linked libs.

Commands Cheatsheet

Task	Command
Create static lib	ar rcs libfoo.a foo.o bar.o
Create dynamic lib	gcc -shared -fPIC foo.o bar.o -o libfoo.so
Link static lib	gcc main.c -L. -lfoo -o main
Link dynamic lib	gcc main.c -L. -lfoo -o main_dynamic
Set runtime lib path	LD_LIBRARY_PATH=. ./main_dynamic
Install .so globally	sudo cp libfoo.so /usr/local/lib/ && sudo ldconfig
Check symbols	nm libfoo.a or nm -D libfoo.so

Static Linking (libfoo.a)

• Binary Size: Larger (library embedded)
• Dependencies: None (self-contained)
• Updates: Recompile needed

Dynamic Linking (libfoo.so)

• Binary Size: Smaller (library loaded at runtime)
• Dependencies: Must have .so file
• Updates: Replace .so without recompiling

Library Hooking in Linux: Intercepting & Modifying Functions

Use the following C file -

#include <stdio.h>

int main() {
    puts("Hello!");
    return 0;
}

Method 1: LD_PRELOAD (Simple Function Overriding)

The easiest way to hook a function is using LD_PRELOAD, which loads your library before others, overriding functions.

Create a hook library:

// hook_puts.c
#define _GNU_SOURCE  // Needed for RTLD_NEXT
#include <stdio.h>
#include <dlfcn.h>   // For dlsym()

// Original function pointer
static int (*original_puts)(const char *) = NULL;

// Our hooked version
int puts(const char *str) {
    // Initialize original_puts if not done yet
    if (!original_puts) {
        original_puts = dlsym(RTLD_NEXT, "puts");
        printf("original_puts @ %p\n", original_puts);
    }

    // Modify behavior
    printf("[+] Hooked! Original message:\n%s\n", str);

    // Call original (optional)
    return original_puts("Hooked!");
}

Compile as a Shared Library

gcc -shared -fPIC hook_puts.c -o libhookputs.so -ldl

Run a program with the Hook

$ LD_PRELOAD=./libhookputs.so  ./puts
original_puts @ 0x742921a80e50
[+] Hooked! Original message:
Hello!
Hooked!

How It Works

1. LD_PRELOAD forces the dynamic linker to load libhookputs.so before libc.
2. When puts() is called, our version runs instead of the original.
3. dlsym(RTLD_NEXT, "puts") gets the original function pointer.
4. We modify the input/output before optionally calling the original.

Method 2: ptrace (Advanced Binary Hooking)

If LD_PRELOAD doesn’t work (e.g., for statically linked binaries), use ptrace to modify running processes.

Write a ptrace-Based Hook

// ptrace_hook.c
#include <stdio.h>
#include <sys/ptrace.h>
#include <sys/wait.h>
#include <sys/user.h>

int main(int argc, char *argv[]) {
    pid_t target_pid = atoi(argv[1]);
    struct user_regs_struct regs;

    ptrace(PTRACE_ATTACH, target_pid, NULL, NULL);
    wait(NULL);

    // Modify `puts()` calls here (advanced)
    ptrace(PTRACE_DETACH, target_pid, NULL, NULL);
    return 0;
}

(Full implementation requires deep knowledge of CPU registers and syscalls.)

Compile & Run

gcc ptrace_hook.c -o ptrace_hook
./ptrace_hook <PID>

Limitations

• Requires root (sudo).
• Complex to implement (must handle CPU registers).
• May crash the target process if done wrong.

Method 3: Frida (Dynamic Instrumentation)

Frida is a powerful hooking framework for Linux, Windows, macOS, and Android.

Install Frida:

pip install frida-tools

Write a Frida Script (hook_puts.js)

// hook_puts.js
Interceptor.attach(Module.findExportByName("libc.so.6", "puts"), {
    onEnter: function(args) {
        console.log(`[Hooked! Original message: ${args[0].readCString()}]`);
    },
    onLeave: function(retval) {
        retval.replace(0); // Modify return value
    }
});

Start new process and inject

$ frida ./puts -l hook_puts.js
#...
Spawned `./puts`. Resuming main thread!
Hello!
[Hooked! Original message: Hello!]
[Local::puts ]-> Process terminated
[Local::puts ]->

Thank you for using Frida!

Inject into a Running Process

frida -n "process_name" -l hook_puts.js
frida -p <PID> -l hook_puts.js

Advantages

• Works on statically linked binaries
• No recompilation needed
• Supports Python/JS scripting

dlfcn.h provides functions to load and interact with shared libraries at runtime (not at compile time). This is Dynamic Loading, and it’s controlled by the Runtime Linker.

Functions provided by dlfcn.h

• dlopen() : Loads a shared object (.so) file at runtime.
• dlsym() : Get the address of a symbol (function/variable) from a loaded library.
• dlclose() : Unloads the shared object.
• dlerror() : Returns a human-readable error if other functions fail.

Don’t forget to link with -ldl.

The function dlopen() loads the dynamic shared object (shared library) file named by the null-terminated string filename and returns an opaque “handle” for the loaded object.

One of the following two values must be included in flags:

• RTLD_LAZY
• RTLD_NOW

Some other flags are:

• RTLD_GLOBAL - Make symbols available for all future dlopen() calls
• RTLD_LOCAL - Default-symbols are only available to current object

The function dlsym() takes a “handle” of a dynamic loaded shared object returned by dlopen along with a null-terminated symbol name, and returns the address where that symbol is loaded into memory.

#include <stdio.h>
#include <dlfcn.h>

int main() {
    void *handle = dlopen("./libhello.so", RTLD_LAZY);
    if (!handle) {
        fprintf(stderr, "dlopen error: %s\n", dlerror());
        return 1;
    }

    void (*hello)() = dlsym(handle, "hello");
    if (!hello) {
        fprintf(stderr, "dlsym error: %s\n", dlerror());
        return 1;
    }

    hello();  // Call the function from the .so file

    dlclose(handle);
    return 0;
}

There are two special pseudo-handles that may be specified in handle:

• RTLD_DEFAULT
• RTLD_NEXT

RTLD_DEFAULT

dlsym(RTLD_DEFAULT, "malloc");

• It tells the linker:

“Find the first occurrence of malloc as if I hadn’t overridden anything.”

• Searches all loaded shared libraries, including libc, and finds the first match.
• Good when you want to call the real/original function safely and globally.

RTLD_NEXT

dlsym(RTLD_NEXT, "malloc");

• It tells the linker:

“Give me the next definition of malloc after me in the symbol lookup order.”

• Used when you’re writing a wrapper around a shared library function (e.g., malloc).
• Especially used in LD_PRELOAD-based hook libraries.

Real-World Hooking Example: Intercept malloc

#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <dlfcn.h>

void* malloc(size_t size) {
    static void* (*real_malloc)(size_t) = NULL;

    if (!real_malloc) {
        real_malloc = dlsym(RTLD_NEXT, "malloc");  // find real malloc
    }

    void* ptr = real_malloc(size);
    printf("[HOOK] malloc(%zu) = %p\n", size, ptr);
    return ptr;
}

Compile and use:

gcc -fPIC -shared -o hookmalloc.so hookmalloc.c -ldl
LD_PRELOAD=./hookmalloc.so ./your_binary

Internally:

• dlopen() interacts with the Runtime Linker (ld.so)
• dlsym() looks into the Dynamic Symbol Table (.dynsym) of the shared object
• All this info comes from .dynamic, .dynstr, .dynsym ELF sections

Let’s revisit Comilation stages in C ;)

C Build Stages

When you write a simple C file like:

#include <stdio.h>
int main() {
    printf("Hello, World!\n");
    return 0;
}

And compile with:

gcc hello.c -o hello

Here’s what actually happens:

Stage	Tool	Description
Preprocessing	cpp	Expands #include, #define, macros, etc.
Compilation	cc1	Converts .c to .s (assembly)
Assembling	as	Converts .s to .o (object file)
Linking	ld	Combines your .o file with startup code and libraries into an ELF executable

Startup Files (crt1.o, crti.o, crtn.o, etc.)

These are C Runtime Startup (CRT) object files. When you link a program, gcc secretly adds these to your link command.

Here’s what’s involved:

1. crt1.o (or Scrt1.o)

• Contains _start, the entry point of your program
• _start sets up the stack, arguments, environment, then calls __libc_start_main

2. crti.o

• Defines special ELF sections like .init and .fini
• These sections are for constructors and destructors
• Begins the .init section (for calling global constructors)

3. crtn.o

• Ends the .init and .fini sections started by crti.o

4. crtbegin.o and crtend.o

• Used by GCC to handle C++-style constructors/destructors via __attribute__((constructor))
• Keeps track of constructor/destructor lists (.ctors, .dtors)

Typical Linking Order (in gcc -v)

/usr/lib/x86_64-linux-gnu/crt1.o
/usr/lib/x86_64-linux-gnu/crti.o
crtbegin.o
... your code ...
crtend.o
/usr/lib/x86_64-linux-gnu/crtn.o

So when you compile, these files are linked implicitly by GCC unless you disable them with -nostartfiles or -nostdlib.

You can also dump the symbol table to see _start:

readelf -s /usr/lib/x86_64-linux-gnu/crt1.o | grep _start

crt1.o    → defines _start
crti.o    → starts .init section
crtbegin.o → starts constructor list
hello.o   → your compiled code
crtend.o  → ends constructor list
crtn.o    → ends .init section
libc.so   → standard C library
ld-linux.so → dynamic linker (for ELF interpreter)

# 1. Preprocessing: Expand macros and includes
gcc -E hello.c -o hello.i

# 2. Compilation: Convert preprocessed code to assembly
/usr/lib/gcc/x86_64-linux-gnu/11/cc1 hello.i -o hello.s

# 3. Assembling: Convert assembly to object code
as hello.s -o hello.o

# 4. Linking manually
ld \
   -dynamic-linker /lib64/ld-linux-x86-64.so.2 \
   -o hello \
   /usr/lib/x86_64-linux-gnu/crt1.o \
   /usr/lib/x86_64-linux-gnu/crti.o \
   hello.o \
   -L/usr/lib/x86_64-linux-gnu/ -lc \
   /usr/lib/x86_64-linux-gnu/crtn.o

TIP

Use /lib64/ld-linux-x86-64.so.2 for 64-bit systems, and /lib/ld-linux.so.2 for 32-bit.

-dynamic-linker tells where the dynamic linker is (you can confirm it with readelf -l /bin/ls | grep interpreter) -lc links libc.so
